P4T-10G40G-60-T-GPO Switch

Available from Planar Monolithics Industries, Inc.
Product Menu
View Company Profile View all Products

Product Details

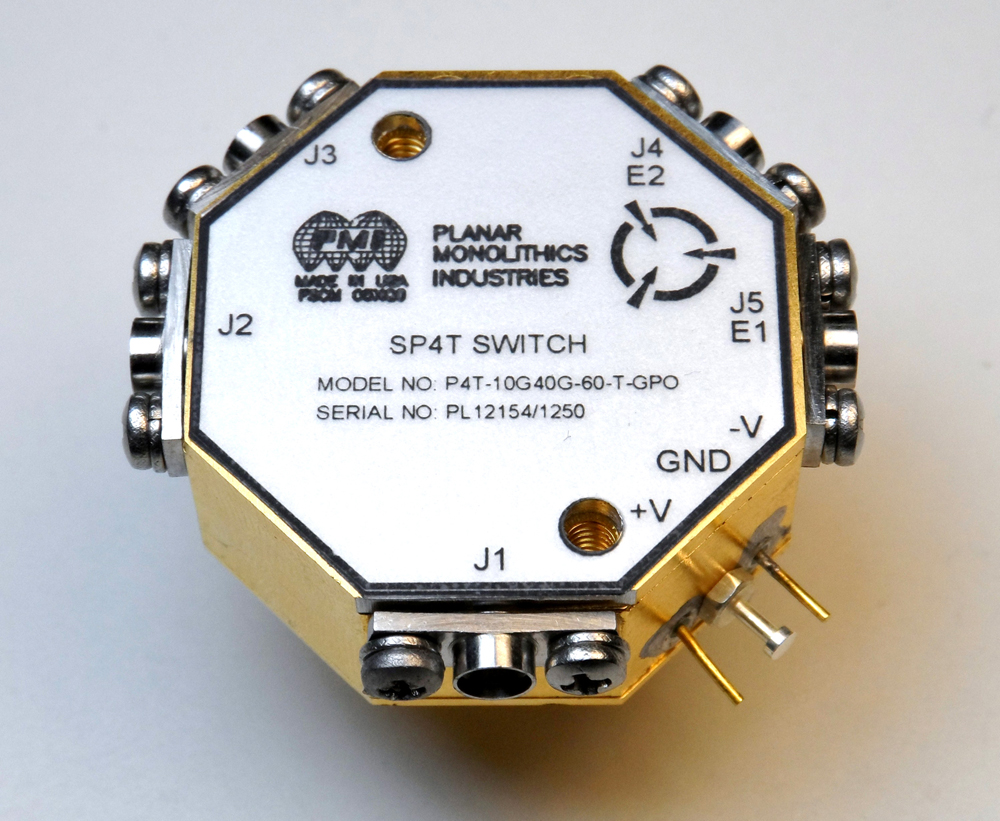

PMI Model No. P4T-10G40G-60-T-GPO is a single pole, four throw, absorptive, solid-state switch that operated over the frequency range of 10GHz to 40GHz. This model provides over 60dB of isolation and has an insertion loss of 6dB maximum. The VSWR is better than 2.0:1 into a 50 ohm impedance. This model is designed to handle operating input power levels up to 200mW (+23dBm CW) and has a maximum switching speed of 30nsec typical. This switch is supplied with GPO connectors at all RF ports. The housing is radial and measures 1.25" x 1.25" x 0.5"
