P1T-26D532D5-90-1212-292FF Solid-state Switch
Available from Planar Monolithics Industries, Inc.

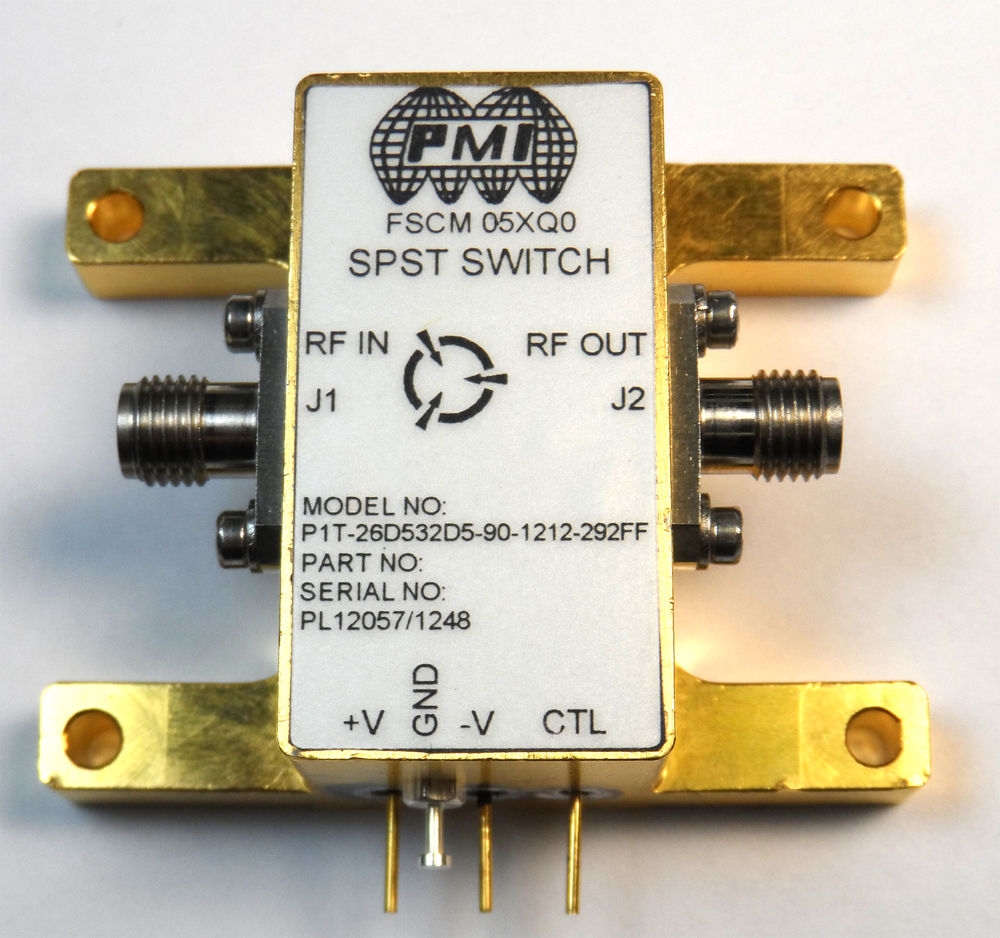

PMI Model No. P1T-26D532D5-90-1212-292FF is an absorptive, single pole, single throw, solid-state switch that operates over the frequency range of 26.5 to 32.5GHz. This model provides a minimum isolation of 90dB and maintains low insertion loss of 5.0dB maximum. The VSWR is 2.0:1 maximum into 50 ohms impedance and offers switching speeds of 25nsec maximum and 15nsec typical. This switch is designed to handle input power levels up to +23dBm CW. The required DC voltage is +12v at 60mA typical and -12v at 40mA typical. Control of the switch is by single line TTL logic and the switch has 2.92mm female RF connectors. The package measures 2.0" x 1.5" x 0.75 and is gold plated.
