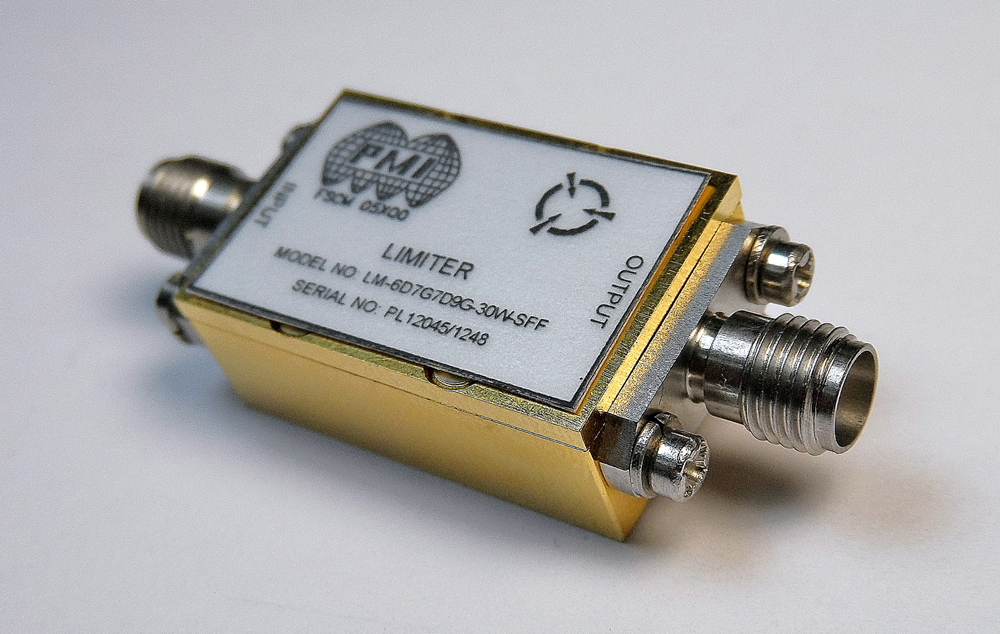

LM-6D7G7D9G-30W-SFF RF Limiter

Available from Planar Monolithics Industries, Inc.

PMI Model LM-6D7G7D9G-30W-SFF is a RF limiter that operates in the 6.7 to 7.9GHz frequency range. This limiter can handle 30 watts CW input power and provides a maximum leakage of +18dBm. This model has a low insertion loss of 1.1dB maximum and a recovery time of 10usec maximum. This limiters is supplied with SMA female connectors and the package measures 1.0" x 0.65" x 0.38" which is gold plated.
