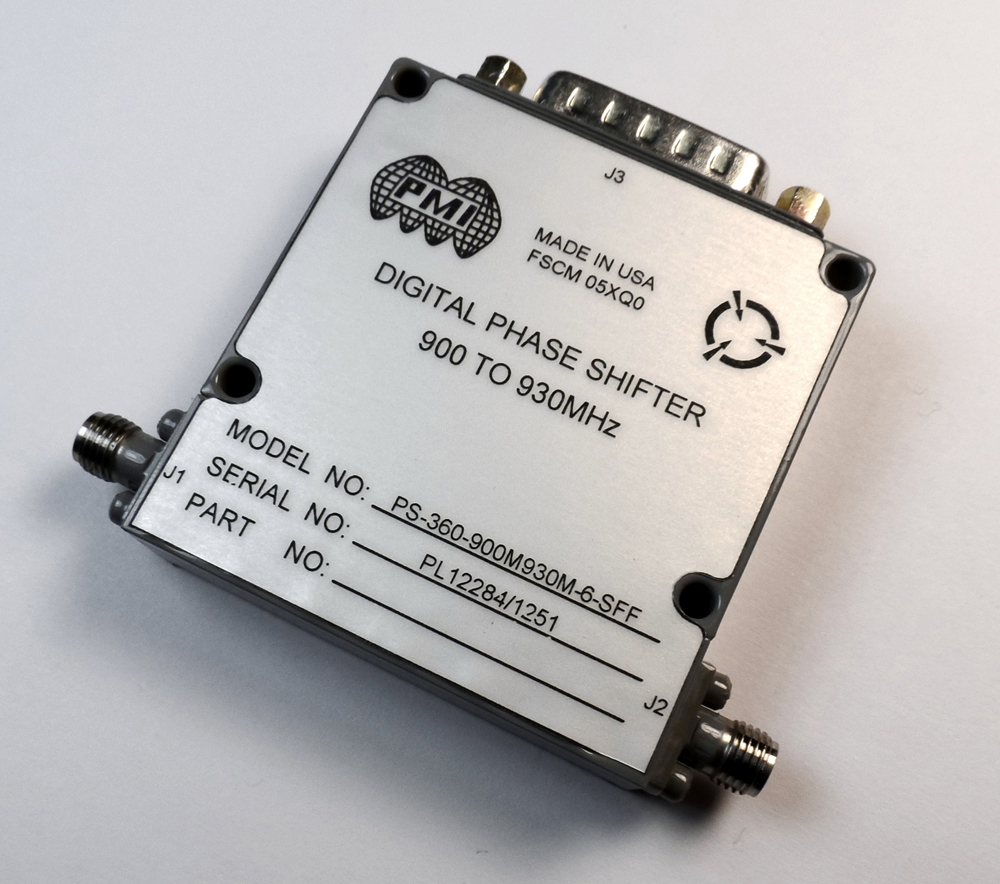

PS-360-900M930M-6-SFF Phase Shifter

Available from Planar Monolithics Industries, Inc.

PMI Model No. PS-360-900M930M-6-SFF is a 900MHz to 930MHz, 6-BIT digitally controlled phase shifter having a LSB of 5.6 degrees. The insertion loss is 7dB typical, 7.5dB maximum with a typical VSWR of 2.0:1. This is a high speed phase shifter that can switch from one phase state to the next in typically 250nsec. This model will operate at input power levels up to +14dBm CW and operates on a DC power supply of ±15VDC. The housing measures 2.0" x 2.1" x 0.5" and is painted gray.
