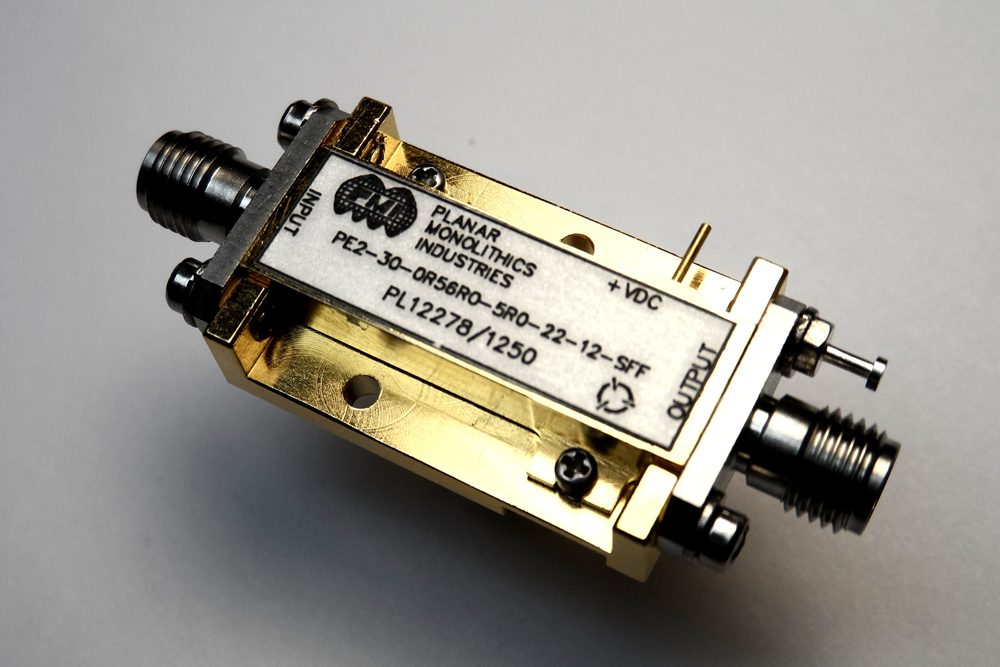

PE2-30-0R56R0-5R0-22-12-SFF Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PE2-30-0R56R0-5R0-22-12-SFF is a 500MHz to 6.0GHz low noise amplifier that typically provides 30dB of gain. The gain flatness is ±1.0dB maximum with a noise figure is 5.0dB typical. This amplifier provides a minimum OP1dB of +21dBm. The VSWR is 2.0:1 maximum into 50 ohms impedance and operates on a single DC supply of +12 to +15 volts with 325mA nominal current consumption. This unit is supplied with field removable SMA female connectors and in our standard PE2 housing that measures 1.08" x 0.71" x 0.29".
