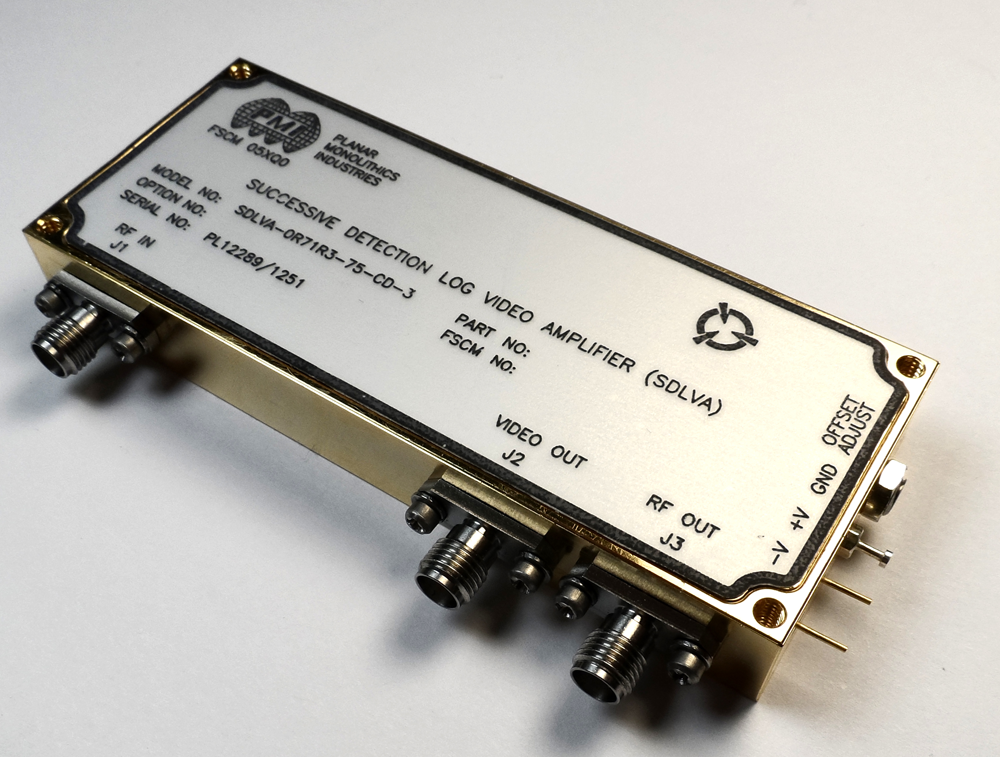

SDLVA-0R71R3-75-CD-3 Successive Detection Log Video Amplifier

Available from Planar Monolithics Industries, Inc.

Model SDLVA-0R71R3-75-CD-3 is a Successive Detection Log Video Amplifier that operates over the 700 to 1300MHz frequency range. This model has a Dynamic Range of 75dB, a log slope of 40mV/dB. The log linearity is ±1.2dB typical from -65 to +5dBm input power levels and a typical TSS of -70dBm. The limited IF Output is +5dBm typical. This model offers very fast rise times of 9nsec and fall times of 25nsec typically. The housing measures 3.75” x 1.50” x 0.50” and is gold plated. Other frequency ranges available.
