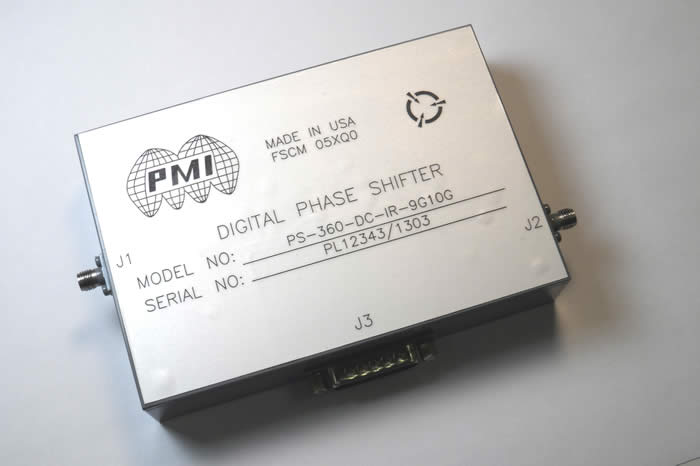

PS-360-DC-IR-9G10G Phase Shifter
Available from Planar Monolithics Industries, Inc.
The PS-360-DC-IR-9G10G is a 10-Bit digitally controlled 360 degree phase shifter that operates from 9.0 to 10.0GHz. This model offers low insertion loss of 7.5dB and a phase shift accuracy of ±0.6 degrees typically. The typical switching speed is 300nsec and operates with input power levels up to +20dBm. This model requires a single voltage supply of +12 to +15VDC with a current draw of 40mA. The housing measures 4.95" x 3.38" x 1.02". Other frequency ranges are available.
