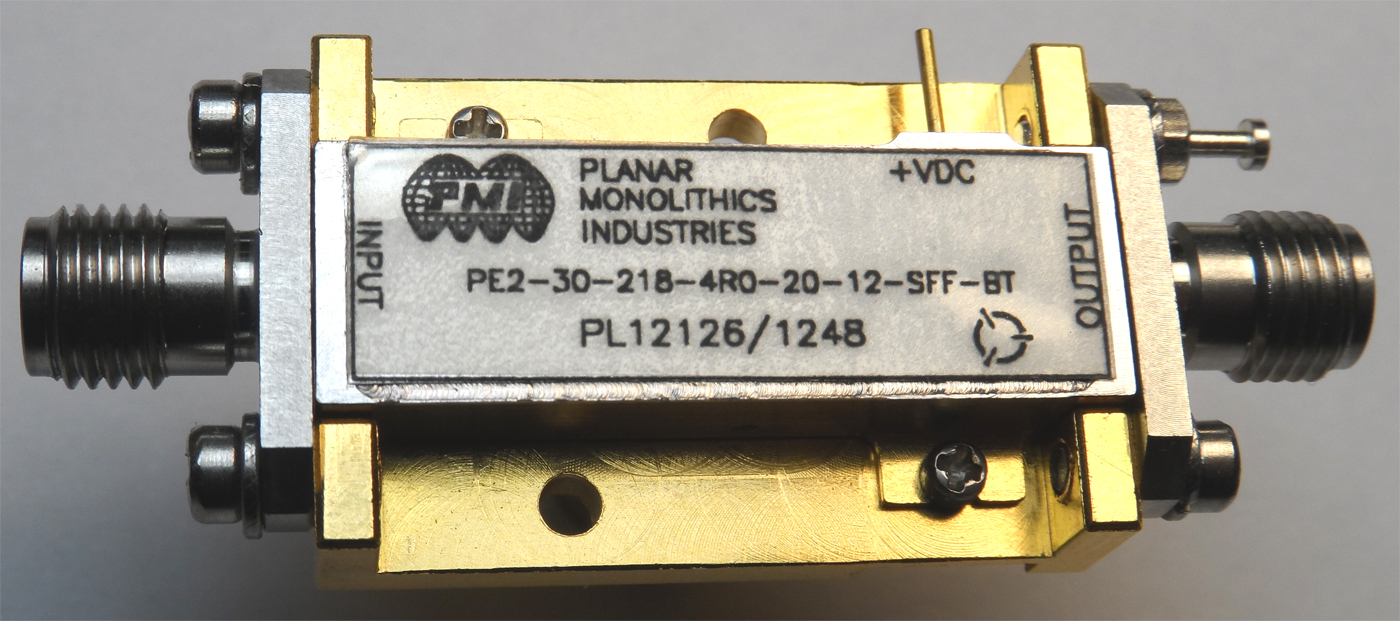

PE2-30-218-4R0-20-12-SFF-BT Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PE2-30-218-4R0-20-12-SFF-BT is a 2.0 to 18.0GHz Low Noise Amplifier that has an integrated bias-tee network on the output port. This amplifier provides 30dB of gain while maintaining a maximum gain flatness of ±2.0dB max over the operating frequency. The noise figure is less than 4dB and offers an OP1dB of +20dBm minimum and an OIP3 of +30dBm typical. The amplifier requires +12 to +15VDC and the current draw is less than 350mA.
