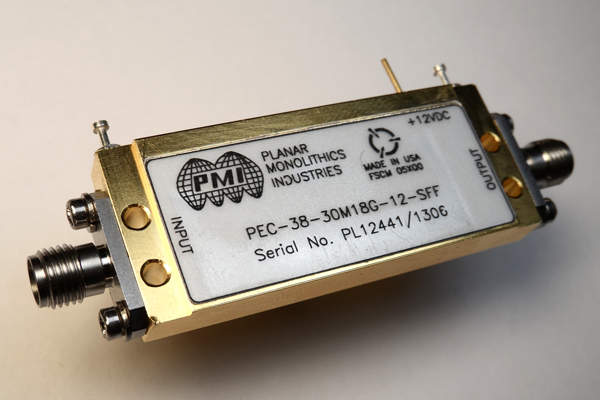

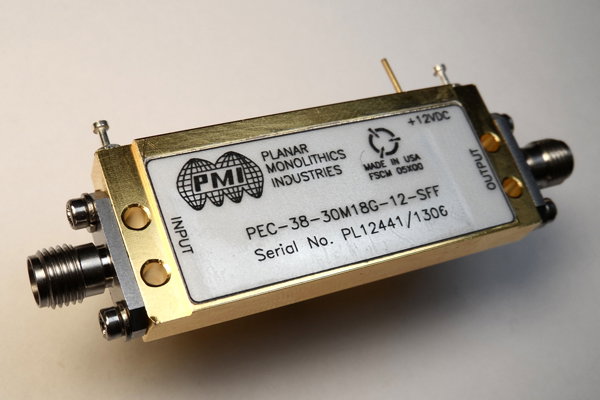

PEC-38-30M18G-12-SFF Low Noise Amplifier
Available from Planar Monolithics Industries, Inc.
PMI Amplifier Model PEC-38-30M18G-12-SFF is a broadband, low noise amplifier that operates over the 30MHz to 18GHz frequency range. This model provides 38dB of gain and has a gain flatness of ±2.0dB maximum. The noise figure is 5dB maximum and the OP1dB is +12dBm minimum. This amplifier maintains a maximum VSWR of 2.2:1 into a 50 ohm impedance. The operating voltage is +12VDC and the current is 300mA maximum. The package measures 1.92" x 0.78" x 0.26".
