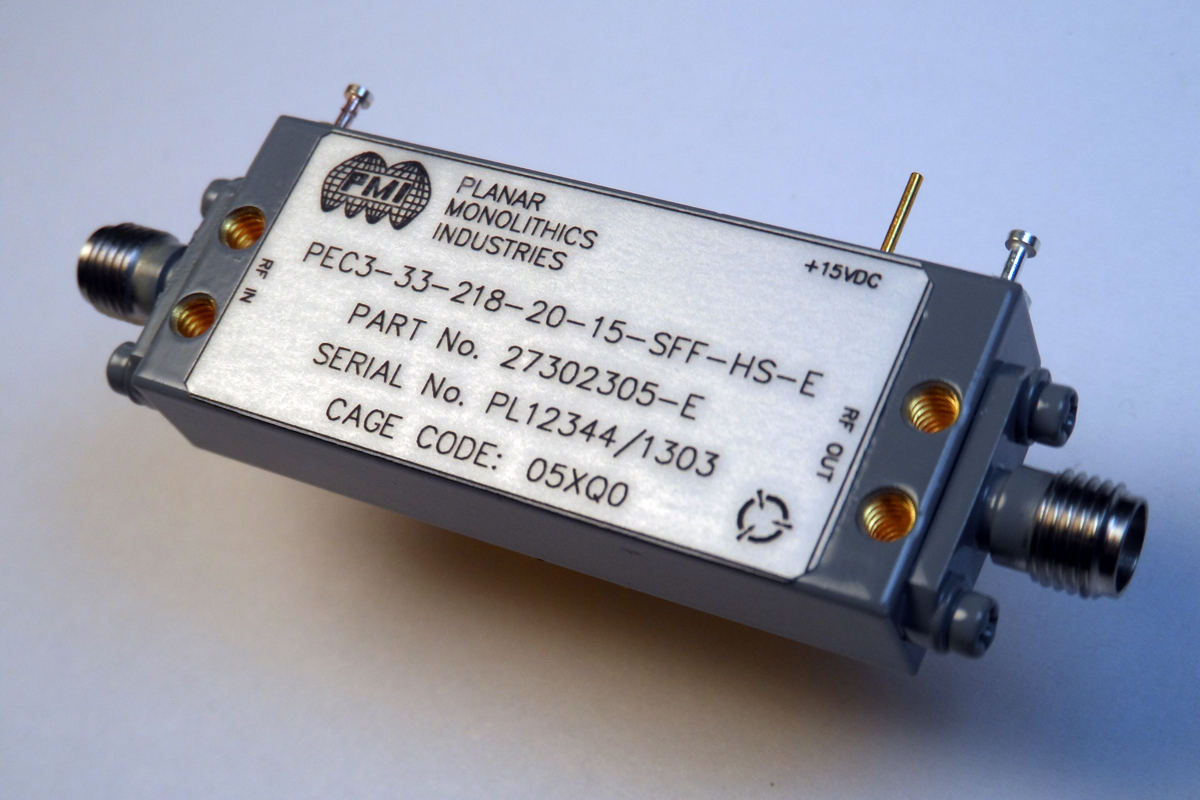

PEC3-33-218-20-15-SFF-HS-E Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PEC3-33-218-20-15-SFF-HS-E is a 2.0 to 18.0GHz Low Noise Amplifier that provides greater than 33dB of gain while maintaining a maximum gain flatness of ±2.0dB maximum over the operating frequency. The noise figure is 4dB typical and offers an OP1dB of +20dBm minimum and an OIP3 of +30dBm typical. The operating voltage is +15VDC and the current draw is typically 350mA. This amplifier is supplied in a hermetically sealed housing that measures 1.91" x 0.78" x 0.36" and is designed for use within an airborne application.
