SDLVA-315M362M Log Video Amplifiers
Available from Planar Monolithics Industries, Inc.
Product Details

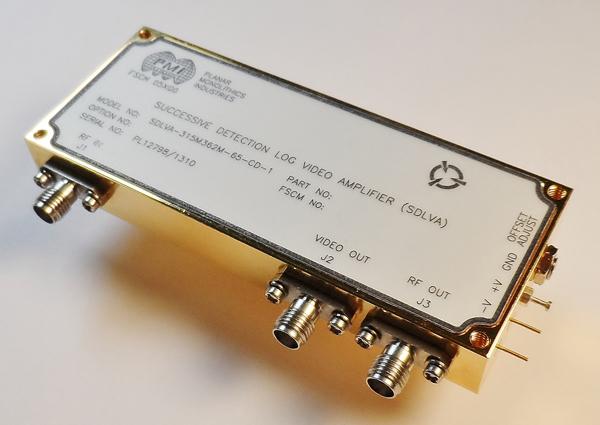

PMI model SDLVA-315M362M Successive Detection Log Video Amplifiers (SDLVA) offers 65dB Dynamic Range over the frequency range of 315 to 362MHz. This model offers a fast rise time of 35nsec maximum and a recovery time of less than 500nsec. The unit is temperature compensated such that log accuracy over temperature remains less than +/-2.5dB over the full operating temperature range of -33 to +77C. This model is supplied in a compact housing measuring only 3.75" x 1.5" x 0.5".
