PEC-37-9G10G-3R0-27-SFF Low Noise Amplifier
Available from Planar Monolithics Industries, Inc.

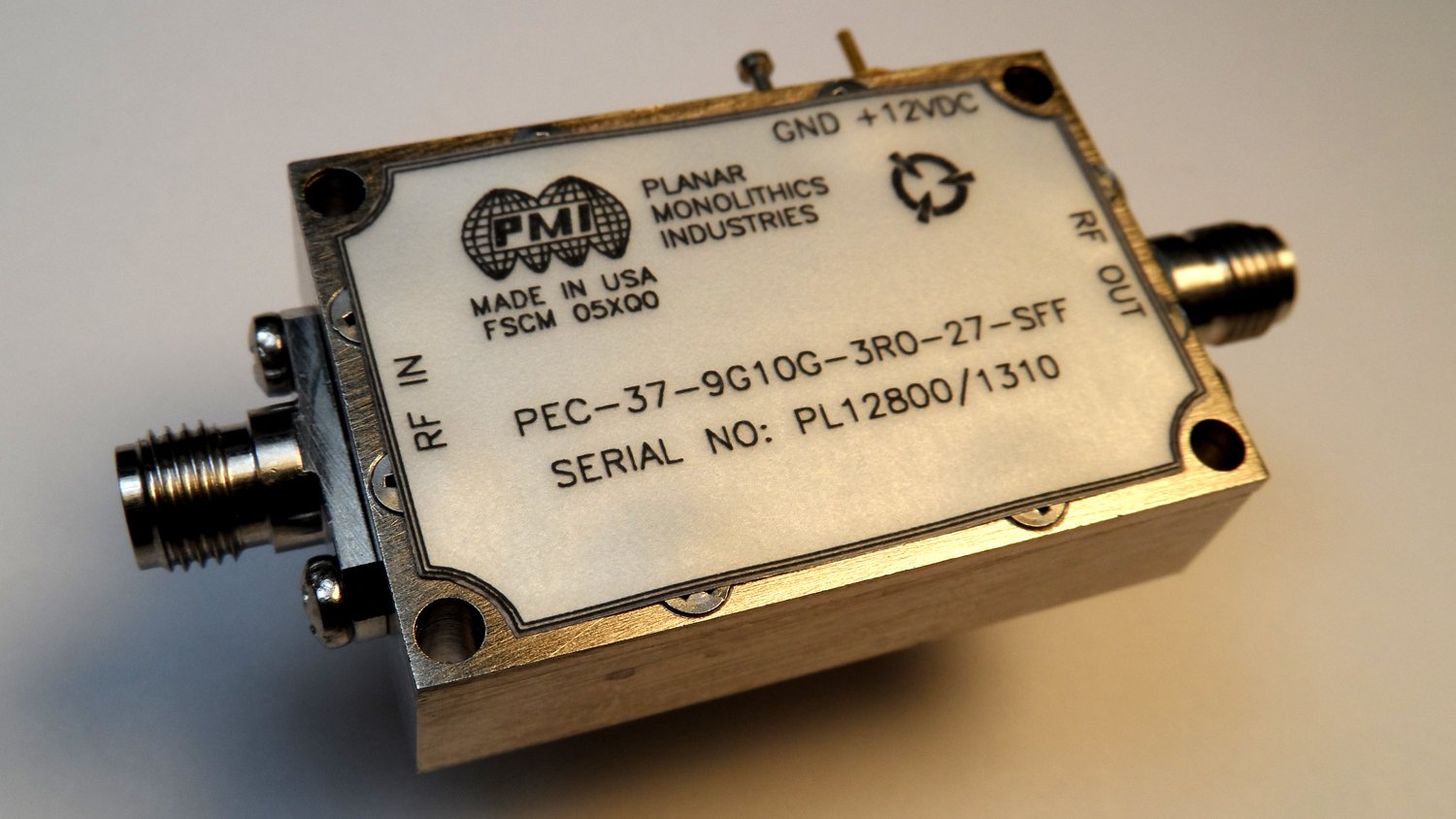

PMI Model No. PEC-37-9G10G-3R0-27-SFF is a Low Noise Amplifier that operates over the 9.0 to 10.0GHz frequency range. This model provides 28dB of gain and offers a low noise figure of 3.0dB maximum. The amplifier provides an OP1dB is +27dBm minimum and operates on +10 to +15VDC with 400mA of typical current draw. This amplifier is supplied in a housing measuring 1.5" x 1.0" x 0.4".
