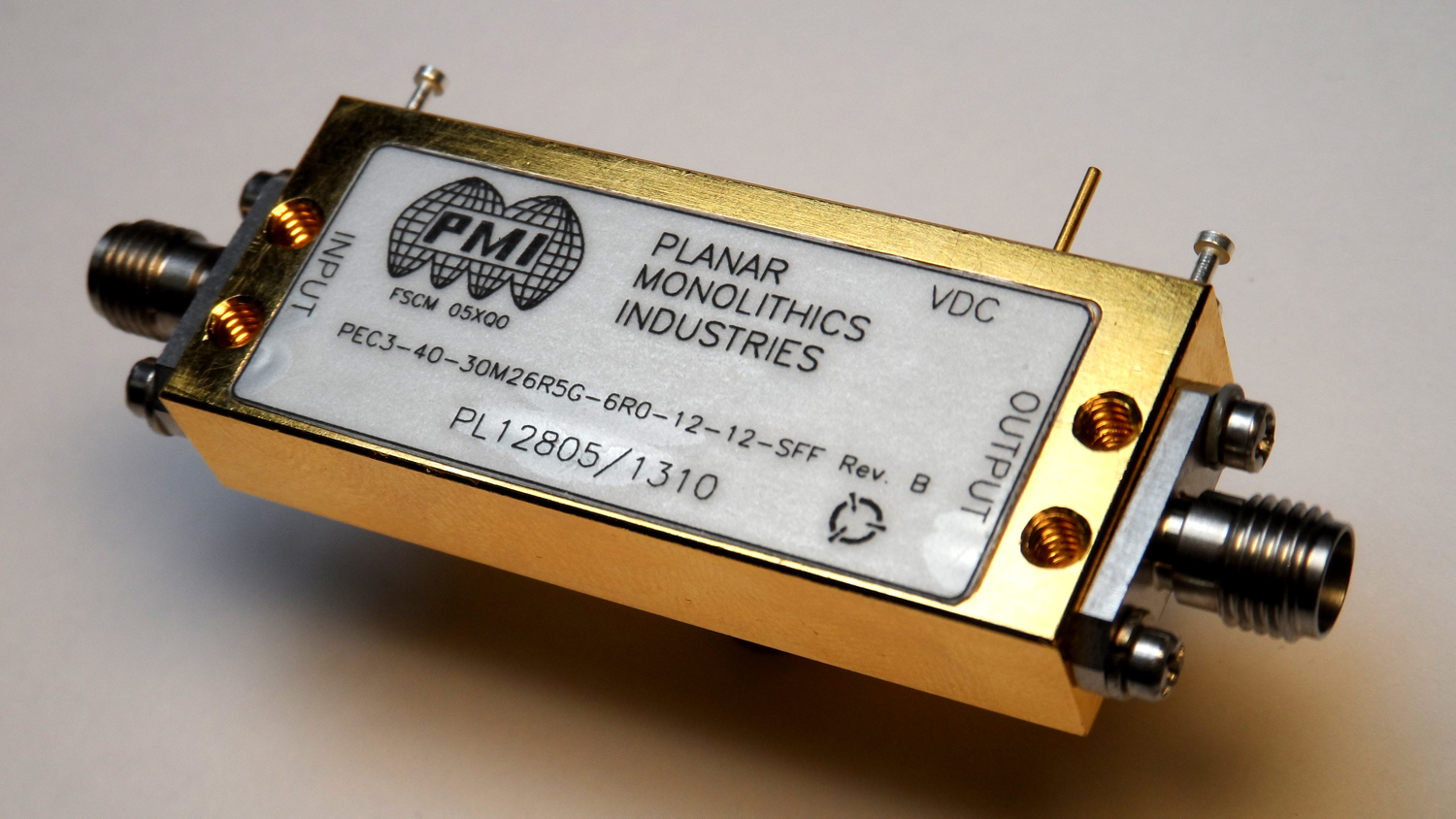

PEC3-40-30M26R5G-6R0-12-12-SFF Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PEC3-40-30M26R5G-6R0-12-12-SFF is a 30MHz to 26.5GHz Low Noise Amplifier that provides greater than 35dB of gain while maintaining a maximum gain flatness of ±3.5dB maximum over the operating frequency. The noise figure is 6.0dB typical and offers an OP1dB of +12dBm minimum. The operating voltage is +12 to 15VDC and the current draw is 700mA maximum. This amplifier is supplied in a package that measures 1.92" x 0.78" x 0.36".
