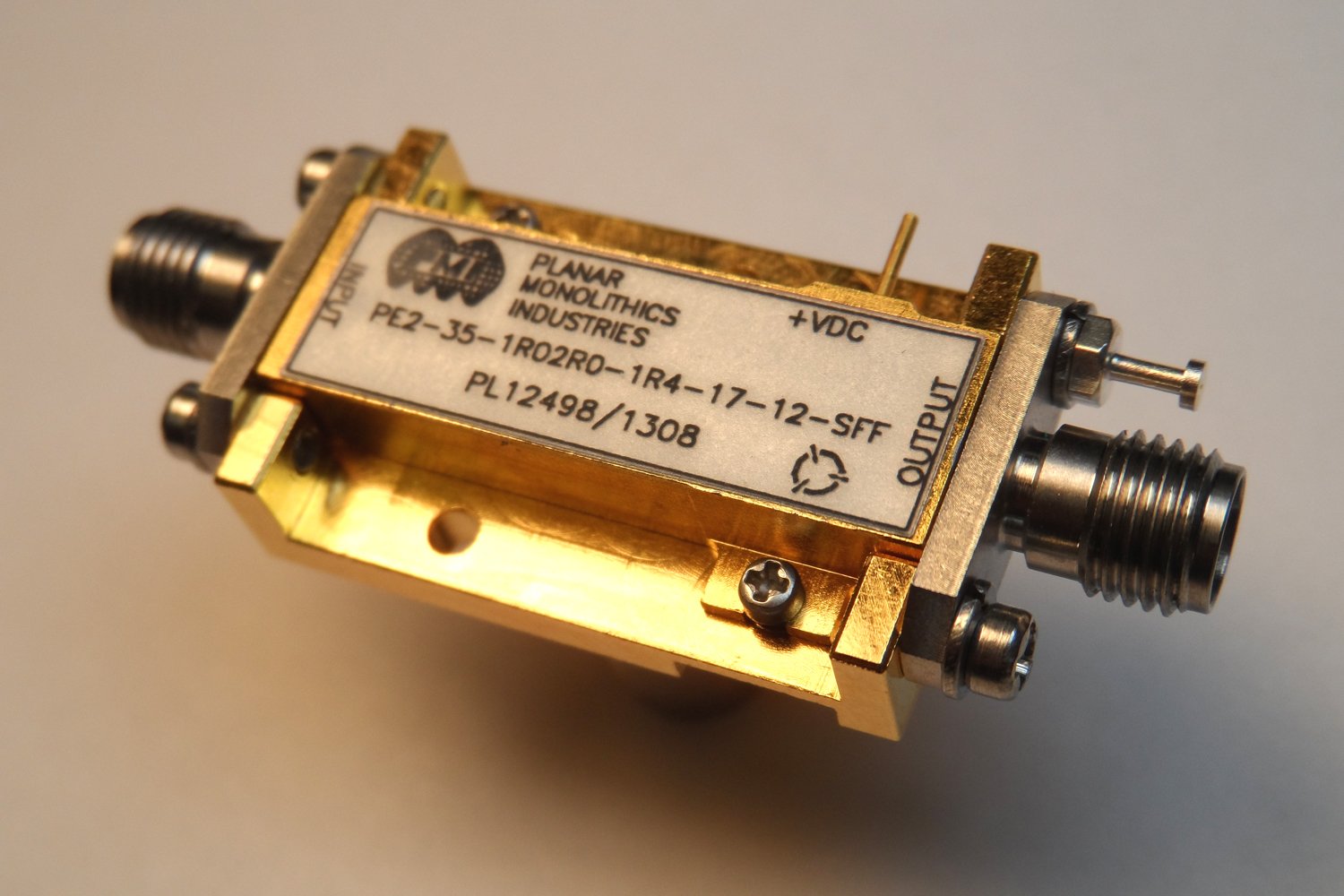

PE2-35-1R02R0-1R4-17-12-SFF Low Noise Amplifier
Available from Planar Monolithics Industries, Inc.
PMI Model No. PE2-35-1R02R0-1R4-17-12-SFF is a Low Noise Amplifier that operates over the 1.0 to 2.0GHz frequency range. This model provides 35dB of gain and offers a low noise figure of 1.4dB typically. The amplifier provides an OP1dB is +17dBm and operates on +12 to +15VDC with 160mA of typical current draw. This amplifier is supplied in the PE2 housing measuring 1.08" x 0.71" x 0.29".
