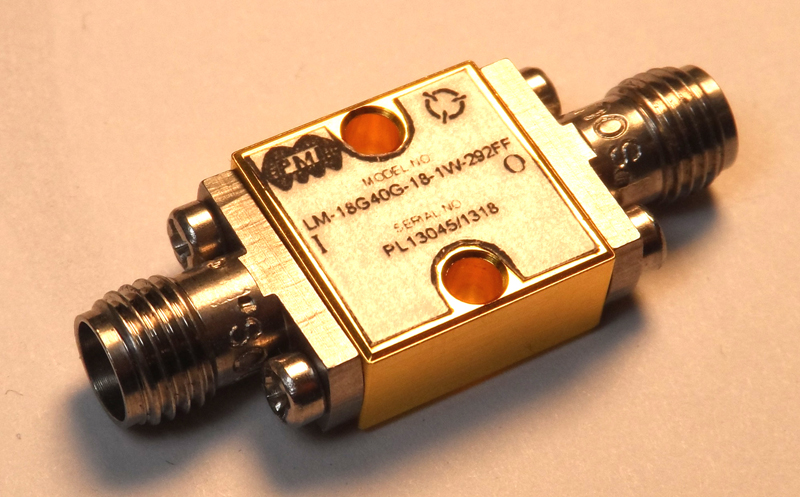

LM-18G40G-18-1W-292FF High Power RF Limiter

Available from Planar Monolithics Industries, Inc.

PMI Model No. LM-18G40G-18-1W-292FF is an Ultra-High Speed, Millimeter Wave, High Power RF Limiter that operates over the frequency range of 18.0 to 40.0GHz. This limiter can handle input power levels up to 1 Watt CW and provides a leakage output power of +18dBm maximum and +12dBm typical. The limiting threshold is +5dBm typical and +9dBm maximum. The insertion loss is less than 4dB having a typical loss of 3.5dB at 40GHz. This limiter offers ultra-high recovery speeds of 10ns maximum. The ultra-small housing measures only 0.5” x 0.5” x 0.22” and features field removable 2.92mm female connectors. This package can be used in connectorized or drop-in form.
