P2T-1090M-70-T-55-SF Absorptive Switch

Available from Planar Monolithics Industries, Inc.

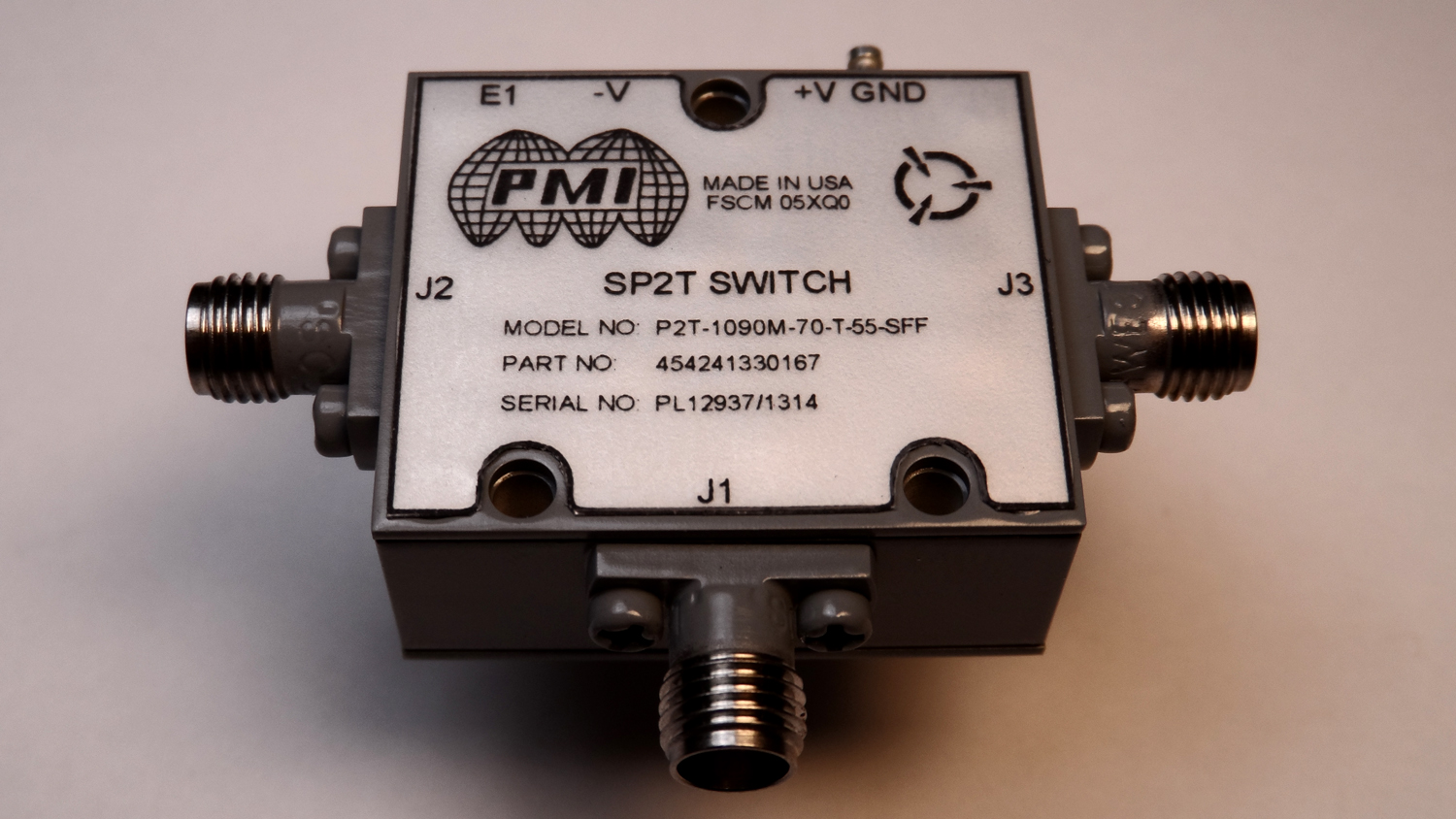

PMI Model No. P2T-1090M-70-T-55-SFF is a Solid-State, Single Pole, Two Throw Absorptive Switch that operates at 1090MHz ±60MHz. This switch offers low insertions loss of 2.5dB maximum, 70dB minimum isolation and a switching speed of less than 100nsec. The operating DC voltages are ±5 volts and draws only 2mA typically. The switch is controlled via a a single TTL line. The housing measures 1.2" x 1.0" x 0.5" and is supplied with SMA female connectors.
