P2T-1G18G-10-R-5V-SFF-HIP10W-HERM Diode

Available from Planar Monolithics Industries, Inc.

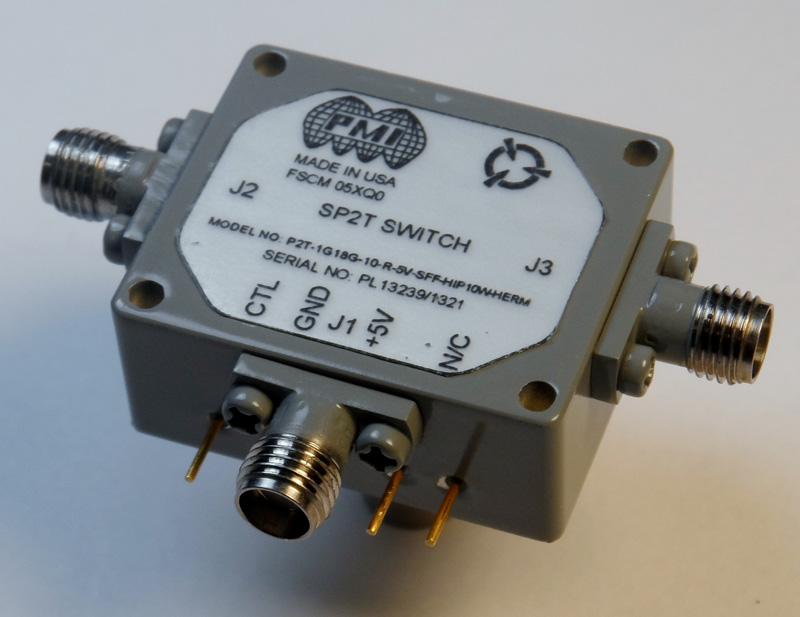

PMI Model No. P2T-1G18G-10-R-5V-SFF-HIP10W-HERM is a hermetically sealed, reflective, single pole, two throw pin diode switch that operates over the 1.0 to 18.0GHz frequency range. This model is capable of handling an input power level of 5 watts CW while providing switching speeds of less than 40ns typically. Port to Port isolation is 25dB typically while providing low insertion loss of 2.5dB typical. The DC power required is a single +5VDC voltage with low current consumption of 35mA. This model incorporates a TTL compatible driver for easy system integration.
