LM-10G-3-26DBM-12V Limiter

Available from Planar Monolithics Industries, Inc.

Product Details

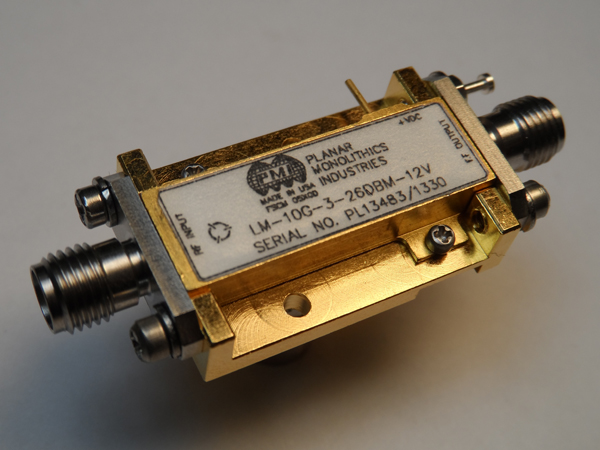

PMI Model No. LM-10G-3-26DBM-12V is an active limiter that operates at 10GHz and provides an input dynamic range of -45 to +26dBm. This limiter offers very hard limiting at 0dBm typically and 3dBm maximum. The VSWR on average is better than 1.4:1 and operating voltage is +12 to +15VDC with a current draw of 100mA. The package measures 1.08” x 0.71” x 0.29” and can be used with SMA connectors or as a drop-in style configuration. Frequency ranges of 500MHz to 18GHz are available.
