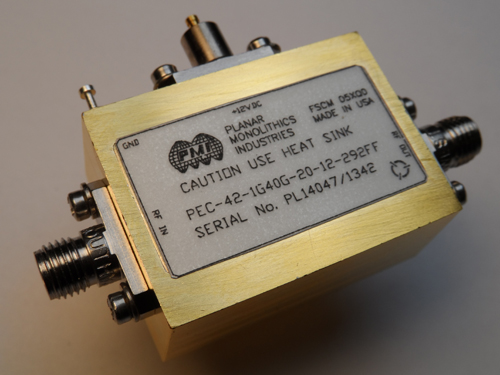

PEC-42-1G40G-20-12-292FF Ultra-Wideband Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PEC-42-1G40G-20-12-292FF is a 1.0 to 40GHz, Ultra-Wideband Low Noise Amplifier that provides 42dB of gain typically with a typical noise figure of 5.5dB. The OP1dB is typically +22dBm (1.0 to 18.0GHz) and +19dBm (18.0 to 40.0GHz).. The maximum input power rating is +17dBm CW and the operating DC supply is 550mA at +12 to +15VDC. This unit is supplied in a package measuring 1.37" x 1.0" x 0.6" with 2.92mm female connectors
