P2T-2G18G-55-T-512-SFF-LV Terminated Single Pole, Two Throw Switch
Available from Planar Monolithics Industries, Inc.

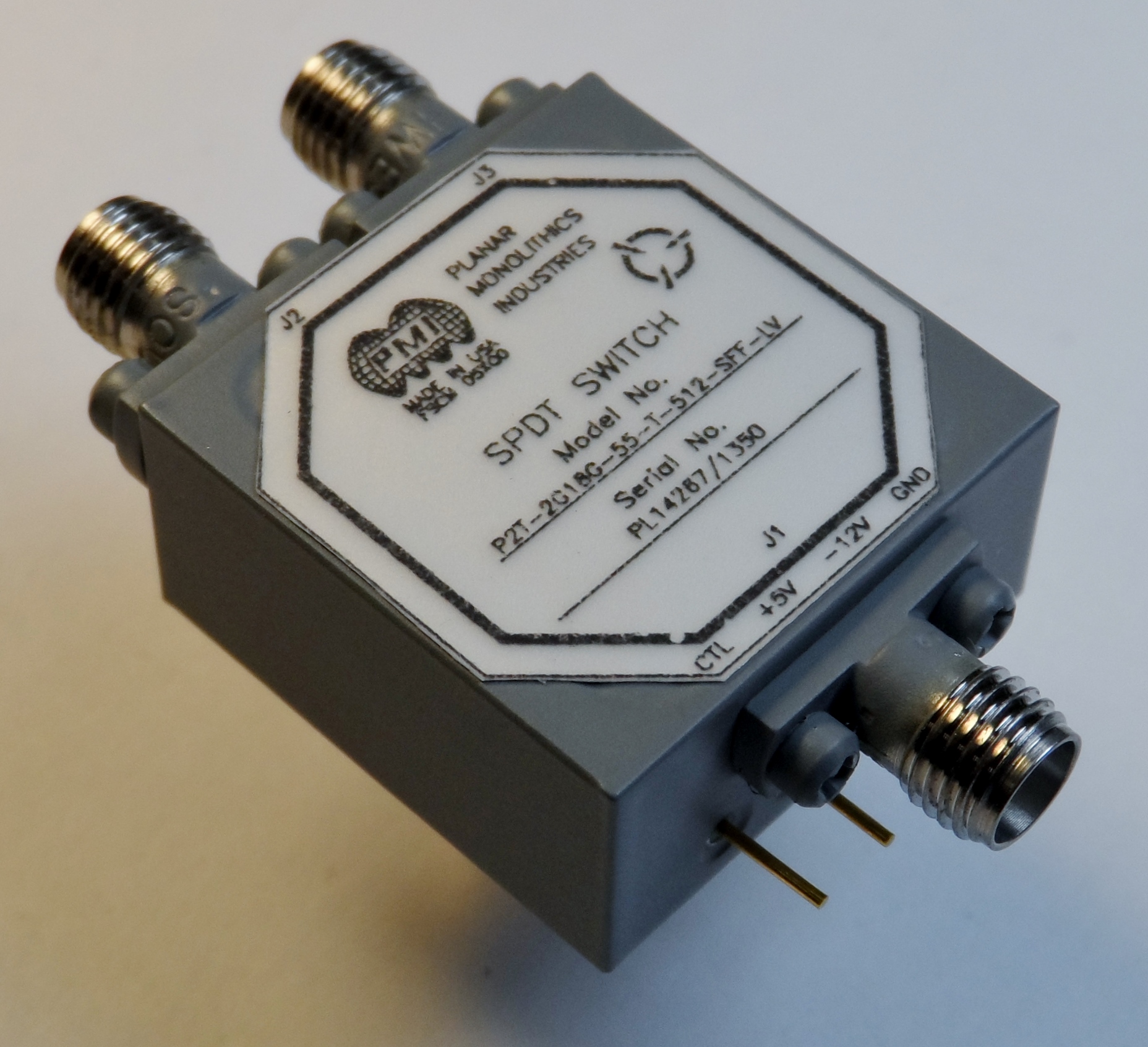

PMI Model No. P2T-2G18G-55-T-512-SFF-LV is a terminated, single pole, two throw switch that operates from the 2.0 to 18.0GHz frequency range and can handle +23dBm CW input power with port to port isolation of 55dB min. This model has low insertion loss while still offering a fast switching speed of 50nsec max.
