PEC2-8G18G-21DBM-LM-SFF Limiting Amplifier

Available from Planar Monolithics Industries, Inc.
Product Menu
View Company Profile View all Products

Product Details

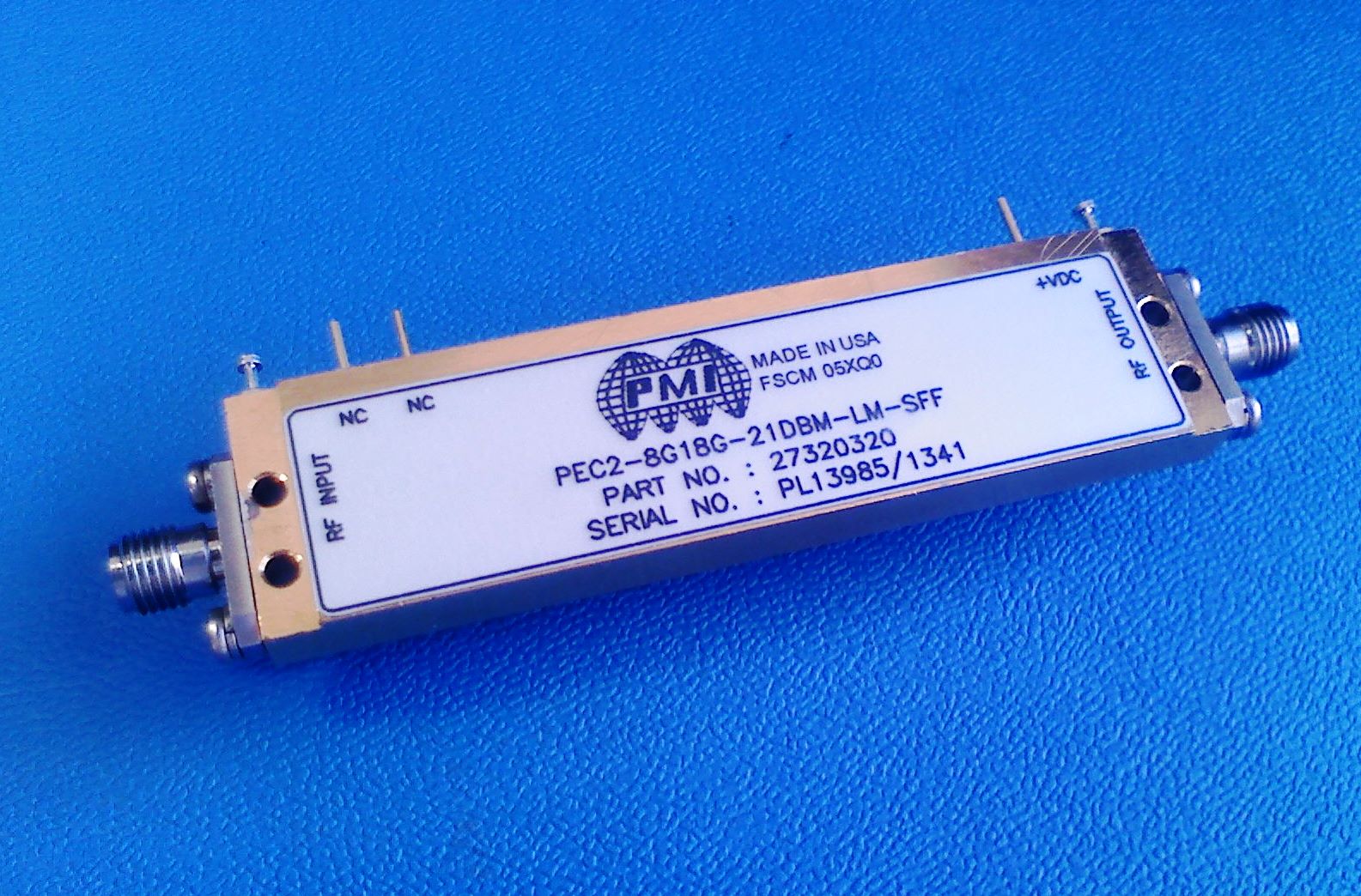

PMI Model No. PEC2-8G18G-21DBM-LM-SFF is an 8.0 to 18.0GHz limiting amplifier that provides an nominal output power level of +20.0dBm for an input power range of -50 to +10dBm CW. This model has output power level versus frequency range compensation such that the limited output power has a flat frequency response. The unit is supplied in a small housing measuring only 2.98" x 0.78" x 0.36".
