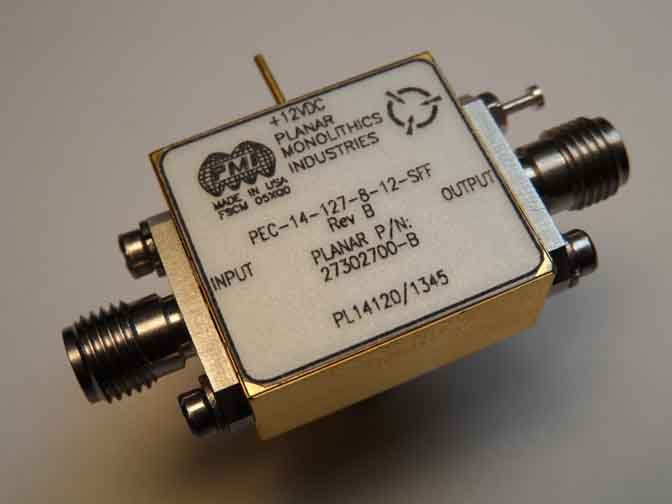

PEC-14-127-8-12-SFF Rev B Wide Band Front End Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PEC-14-127-8-12-SFF Rev B is a wide band front end amplifier that operates over the frequency range of 1.0 to 26.5GHz. This model provides gain of 13dBm to 17dBm and has a maximum gain flatness of +/-1.5dB. The maximum noise figure is 5.5dB from 1.0 to 20.0GHZ and 6.0dB from 20.0 to 26.5GHz. The housing measures 0.83" x 0.75" x 0.36" and is supplied with removable SMA connectors.
