PA-40-17D521D5-5R0-36-12-292FF Medium Power Amplifier
Available from Planar Monolithics Industries, Inc.

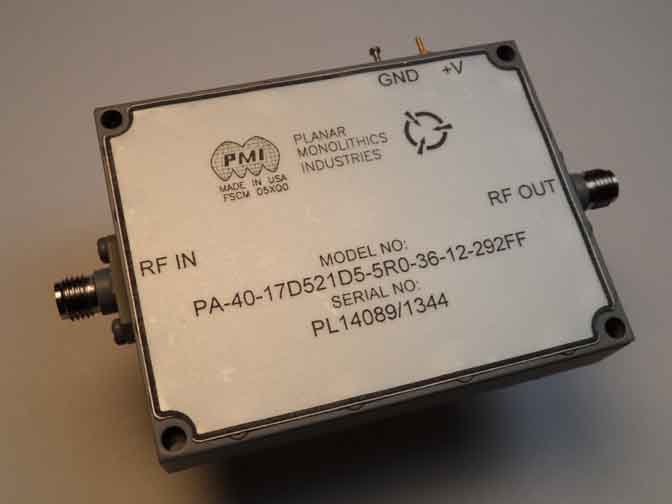

PMI Model No. PA-40-17D521D5-5R0-36-12-292FF is a medium power amplifier that operates over the frequency range of 15.7 to 21.5GHz. It has a nominal gain of 40dB typical with a maximum gain flatness of +/-1.75dB and a typical noise figure of 5.0dB. It is supplied with SMA(F) connectors in a housing that measures 2.6" x 2.0" x 0.5"
