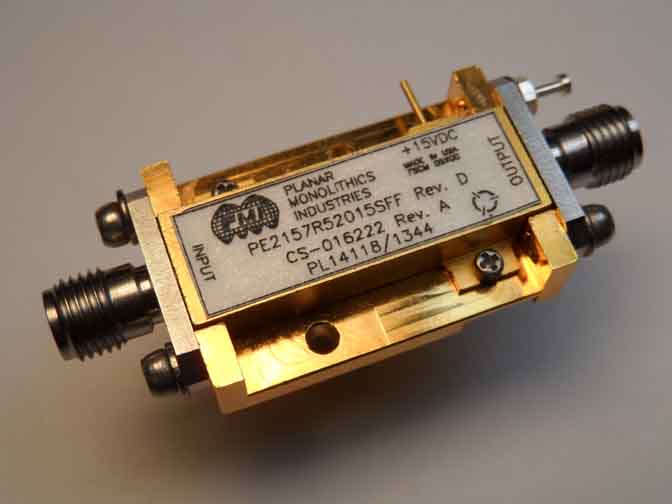

PE2157R52015SFF Rev. D Low Noise Amplifier

Available from Planar Monolithics Industries, Inc.

PMI Model No. PE2157R52015SFF Rev. D is a 7.5 to 20.25GHz, low noise amplifier that provides a small gain window of 14.5 to 17.5 with a typical gain flatness of +/-1.5dB. The noise figure is 6.0dB max and offers an OP1dB of 18.0dBm min. The operating voltage is +15VDC and the current draw is 300mA max. This unit is supplied with removable SMA(F) connectors in our standard PE2 housing.
