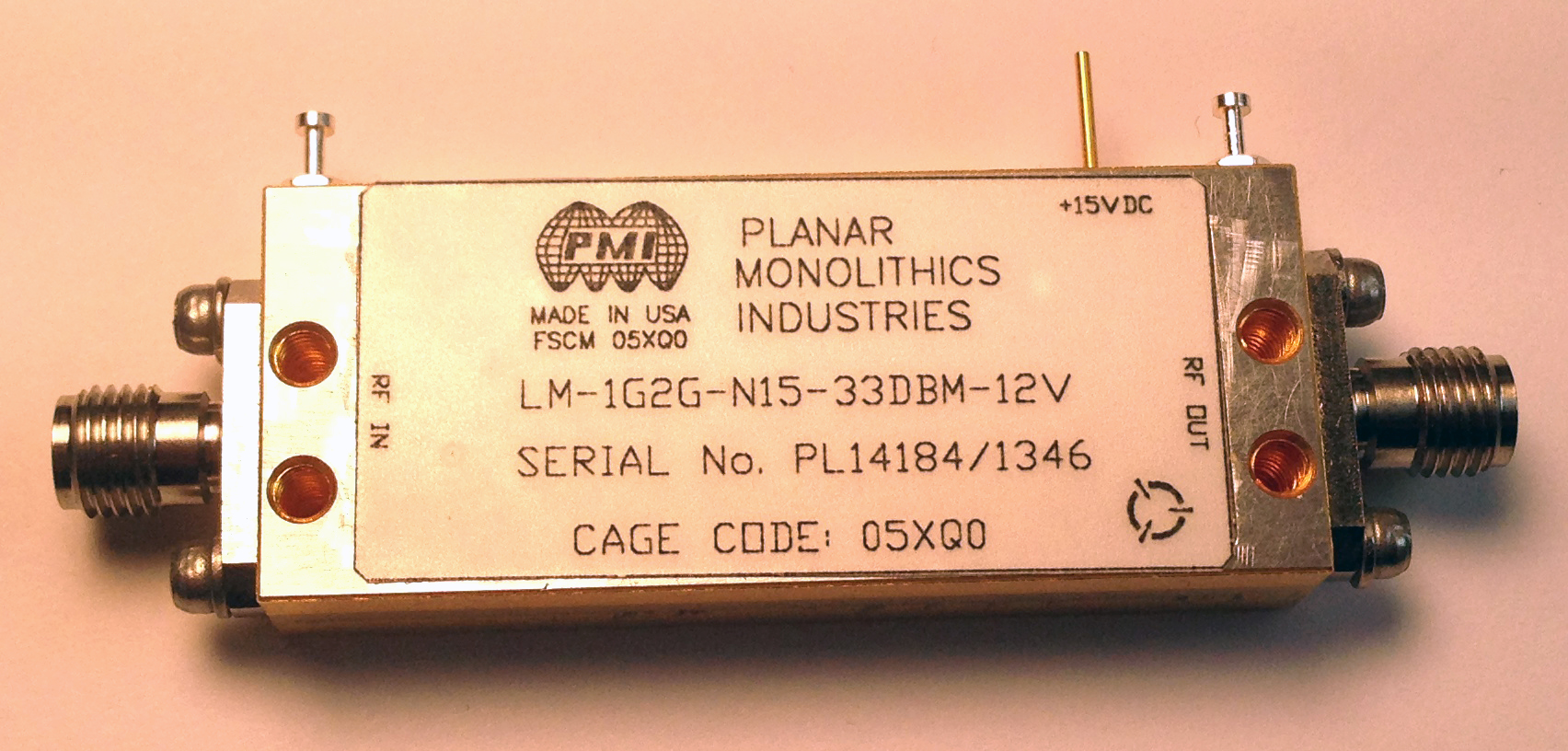

LM-1G2G-N15-33DBM-12V Active Limiter

Available from Planar Monolithics Industries, Inc.

PMI Model No. LM-10G-3-26DBM-12V is an active limiter that operates over a frequency range of 1.0 to 2.0GHz with maximum input power of +33dBm CW and a maximum leakage power of -15dBm. The VSWR is 2.0:1 and the operating voltage is +12VDC with a typical current draw of 250mA. The unit is supplied with SMA(F) connectors in a housing that measures 1.92" x 0.78" x 0.36"
