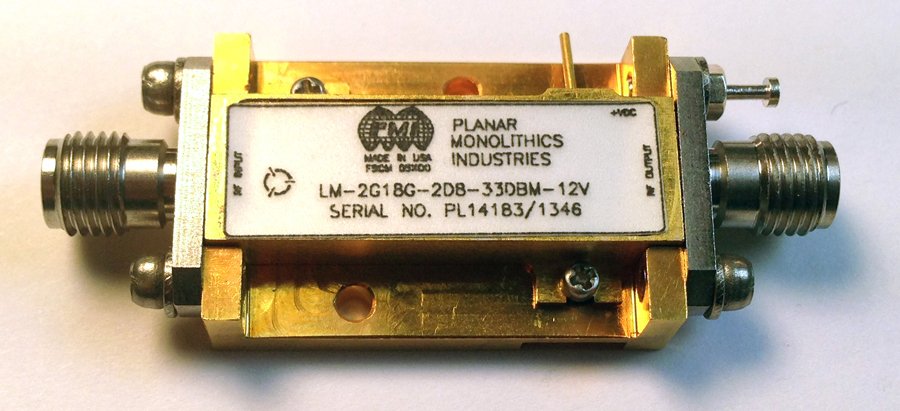

LM-2G18G-2D8-33DBM-12V Active Limiter

Available from Planar Monolithics Industries, Inc.

PMI Model No. LM-2G18G-2D8-33DBM-12V is an active limiter that operates over a frequency range of 2.0 to 18.0GHz with max input power of +33dBm CW and a maximum leakage power of +2.8dBm. The VSWR is 2.0:1 max the operating voltage is +12VDC with a current draw of 180mA max.. The unit is supplied with removable SMA(F) connectors in our standard PE2 housing.
