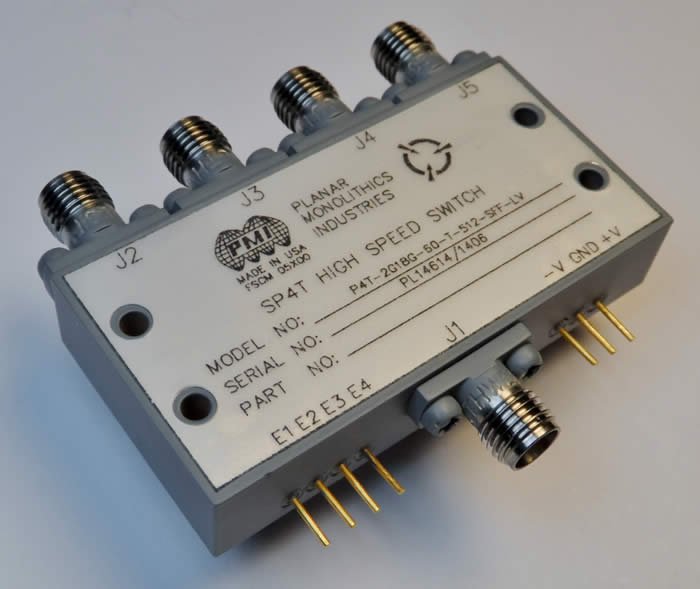

P4T-2G18G-60-T-512-SFF-LV 2.0 to 18.0GHz, Single Pole, Low Video Transient Switch

Available from Planar Monolithics Industries, Inc.

PMI Model No. P4T-2G18G-60-T-512-SFF-LV is a 2.0 to 18.0GHz, single pole, four throw, absorptive, low video transient switch. This model offers 60dB of port to port isolation and a maximum insertion loss of 3.2dB. It has a switching speed of 50ns max and is independently TTL controlled with an operating power of +23dBm CW and a VSWR of 2.0:1. This unit is supplied with Passive Stainless Steel, SMA(F) connectors in a hermetically sealed housing that measures 2.0" x 1.0" x 0.4".
