P2T-500M18G-50-T-SFF-I Terminated, Single Pole, Two Throw Switch
Available from Planar Monolithics Industries, Inc.

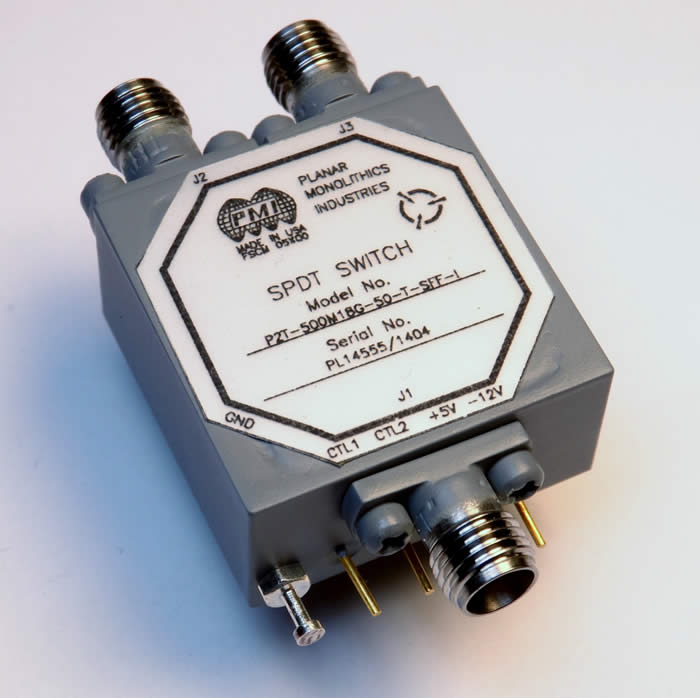

PMI Model No. P2T-500M18G-50-T-SFF-I is a terminated, single pole, two throw switch that operates over the frequency range of 0.5 to 18.0GHz. This model handles +23dBm CW input power with port to port isolation of 50dB min. It has a low insertion loss of 2.8dB max while still offering a fast switching speed of 50nsec max. The unit is supplied with SMA Female connectors in a housing measuring 1.0" x 1.0" x 0.5".
