Reflective Solid State Switch
Available from Planar Monolithics Industries, Inc.

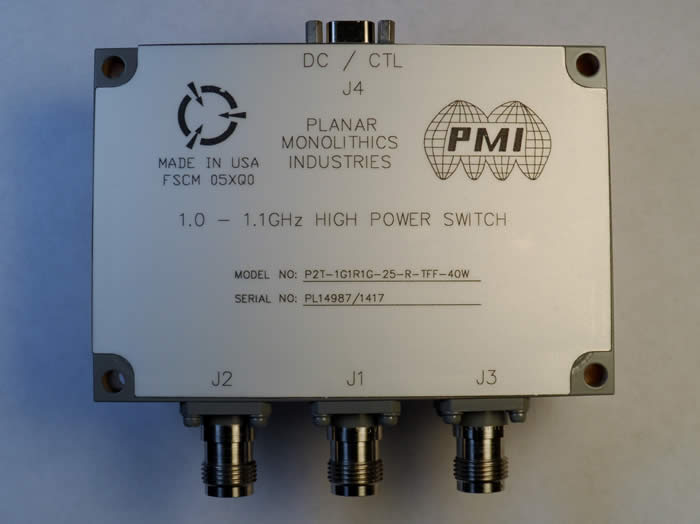

MMIC switches from Planar Monolithic Industries (PMI) include its newest reflective solid state switch, Model No. P2T-1G1R1G-25-R-TFF-40W, a single pole, two-throw, hermetically sealed, reflective switch designed to operate over the 1.0 to 1.1GHz frequency range.
This model is designed to handle 40 watts average input power and 4KW peak having a 3usec pulse width and 1% duty cycle.
The switch offers fast switching speeds of 300nsec maximum, low insertion loss of 0.4dB typically and high isolation of 37dB typically. The DC supplies are +50VDC, 18mA typical and +5VDC, 63mA typical. The housing measures 3.92" x 2.68" x 0.70" and is supplied with TNC Female connectors.
