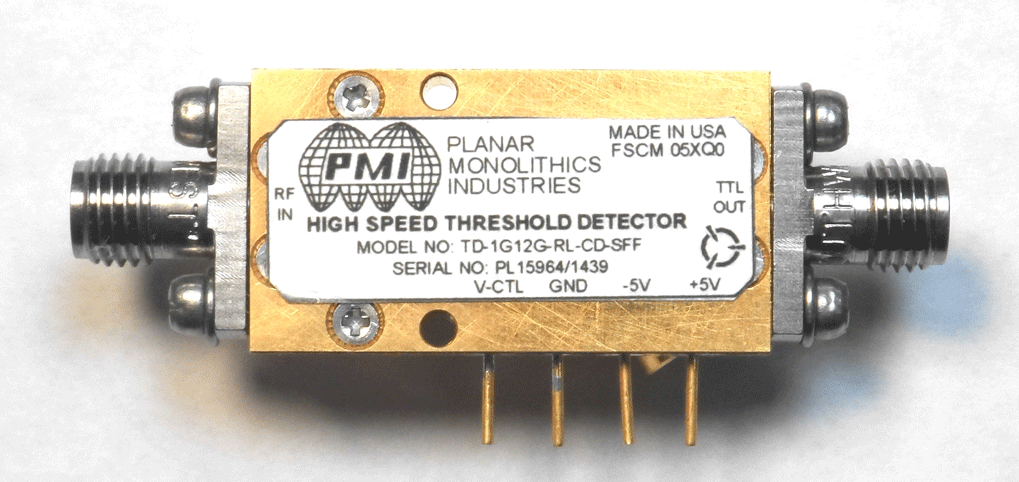

PMI Model No. TD-1G12G-RL-CD-SFF

Available from Planar Monolithics Industries, Inc.

PMI Model No. TD-1G12G-RL-CD-SFF is a high speed threshold detector designed to operate over the 1.0 to 12.0GHz frequency range. It has an adjustable threshold level of -30 to -10dBm and a VSWR of 3.0:1 max. This unit comes in a very small size with field removable SMA connectors on the input and output and has active low output.
