Product Details

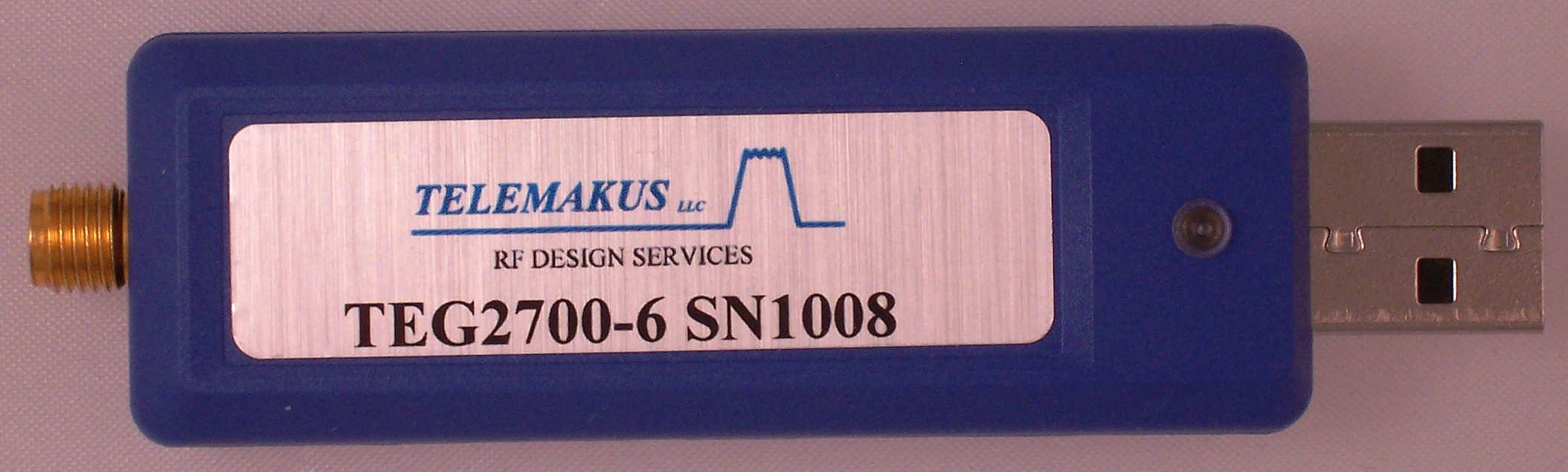

Synthesized RF signal generator covering a range of 1.8-2.7GHZ with a minumum of +6dBm output. The phase noise is -105dBc/Hz at 100KHz offset. The unit is powered and controlled via USB. The control software is stored on the device in flash memory allowing a very fast installation. The GUI provides control for frequency, sweep range and step size and ON/OFF control. The output is SMA female and the USB connector is type A. Applications include LO source, test input for amplifier testing and when combined with the TED6000-50 Power sensor a low cost scaler analayzer can be created for measurement of gain or VSWR with the addition of a bridge or directional coupler.
